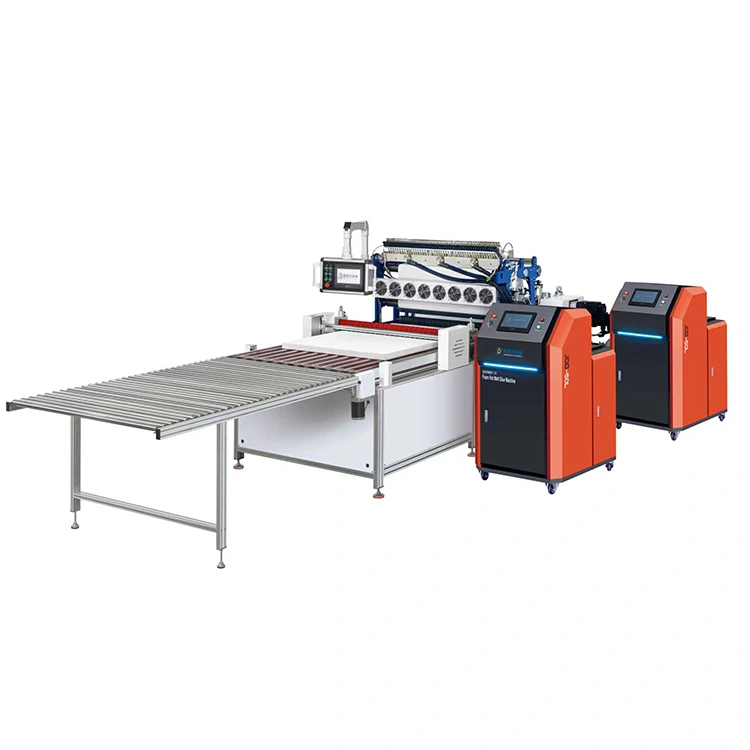

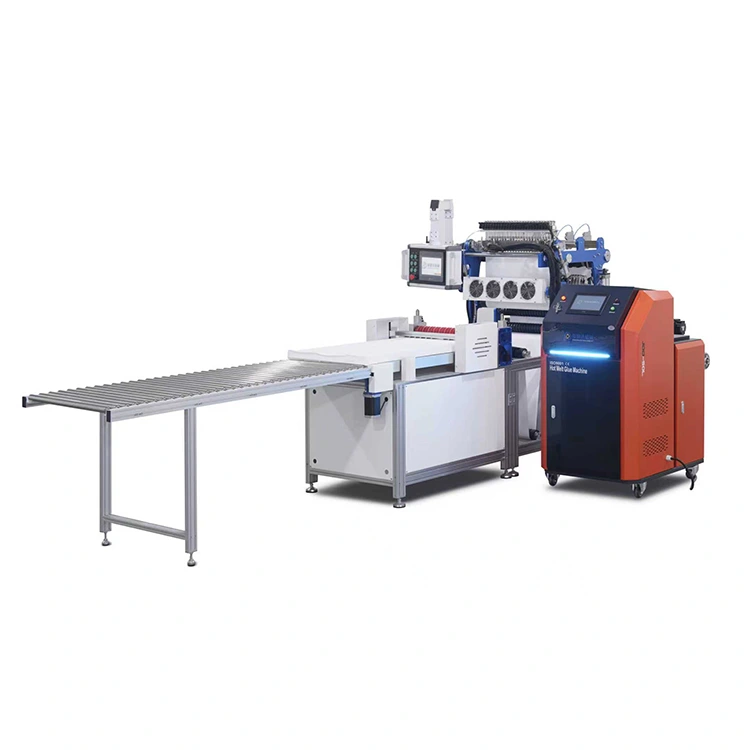

Fibreglass Synthetica Media Filter Production Line2

Payment：the 100% deposit for production, the balance before shipment.

Productio Time：30 working days.

Productio Specifications

1. Opus Width：≤1250mm

2. Pleating Height：17 ~ 120mm

3. Maximum materiale volumen diameter：≤1000mm

4. Productio Speed：5-15M/min

5. Power：15KW  380V

6. Air pressura：0.6-0.8Mpa

7. Machina Weight：2100kg

8. Size：7500mmX2300mmX1900mm（LXWXH）

Pars pascendi:

1. Pneumatica pastio.

2. Materia scapi inflatabilis positio tensionis.

3. Automatici magnetici pulveris tensionis systematis (secundum diversam magnitudinem volumine materiae ad tensionis automaticae temperatio consequendam).

4. Auget defectum terroris materialis functionis.

5. Complectens fibram chemicam materiam tensionis dispensandi systema.

Charta plicatilis mechanismus;

1. commensuratio Paperback Seiten: manualis temperatio (cum accuratione dial, mechanismo pneumatico stabilior).

2. duplex incisum cultelli figuratio: duplex servo charta plicatio cultelli cylindri (secundum Germanorum TAG similes machinas productas design, longam vitam incisum cultelli cylindri coetus sustentationem liberorum).

3. incisum cultellum per totum processum quinque-axis machinis centrum altiore sculpturae et stridoris, superficies durities chromatis tractandi obsistens, magis obsistens, incisum spiculi iuvantis utens totum polyurethanum globulus hastile diu sine labore et dilacratione sine substitutione.

4. ratio servo: Taiwan TECO

5. pressionem gladium: 2 sets

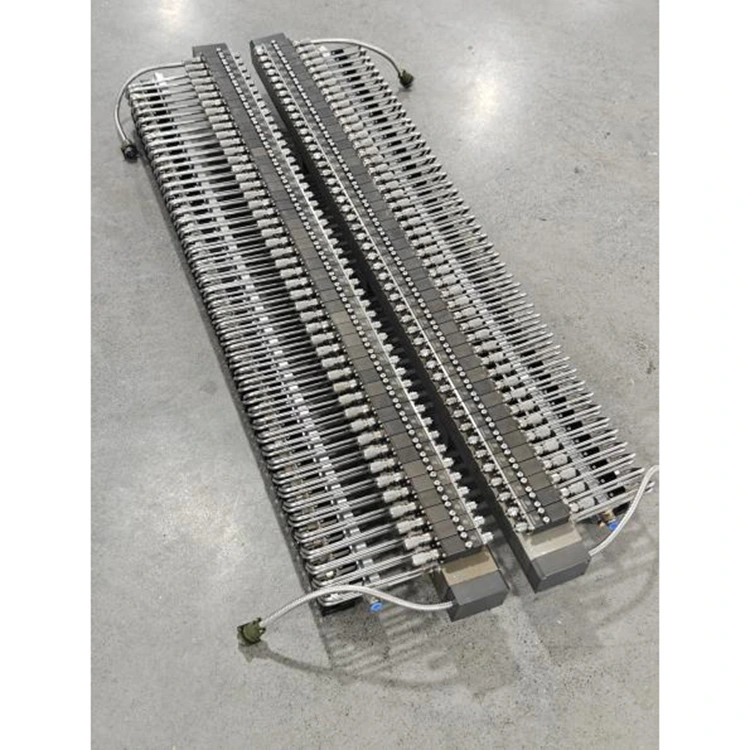

Pars gluten Imbre:

1. Slitting: 4 coetus pneumaticorum incisurae (pressio aeris aptabilis), manualis temperatio, hastile exstingui et obdurationis incisurae.

Processus.

2. gluten scapus: superficies curatio anti-adhaesio Teflon.

3. SPARSIO spacing: 25.4mm * 48 * 2 circulorum verticalium sursum et deorsum spargens (singulis tactus screen separato potestate)

(Quisque tactus velamentum singulariter regitur).

4. Mode mode: Continuus spargit, Glutinum frangit, Intercisa spargit, Inter- spargit.

5. Systema refrigerationis: quattuor partes magnae voluminis aeris refrigerationis ventilationis (digital ostensio voluminis aeri magis intuitivi et accurati adaptandi).

6. Spray modus gun: sursum et deorsum verticali imbre glutinum, pneumaticum in et extra.

7. Axis slitting: independens servo coegi (slitting firmior).

8. Auge chartam deprehensionem activitates automatice interrumpendendi functionem.

Pars tenens:

1. Folia altitudo: tactus screen input Taiwan TECO servo motoris imperium automatic temperatio.

2. Conveyor modus: continua, inching (Taiwan TECO servo motoris imperium accuratius).

3. Cingulum vehiculi: polyurethane cingulum synchronum (non facile lapsus facile rumpere).

4. Refrigerationem: instructum cum 2 metris longis cylindro non-Lorem refrigerandi.

Totus apparatus:

1. principale machinam induit 4080 aluminium industriae inspissatum profile

2. totus apparatus sheet metallum utens 1.5mm dispensando frigoris pressa laminam plastic spargit

3. totius machinae electricae adjumenta: systematis servo - Inovance, PLC - Iaponia Panasonica , humili intentione electricum adjumenta - Schneider.

4. Pneumatica: Artac (Taiwan)

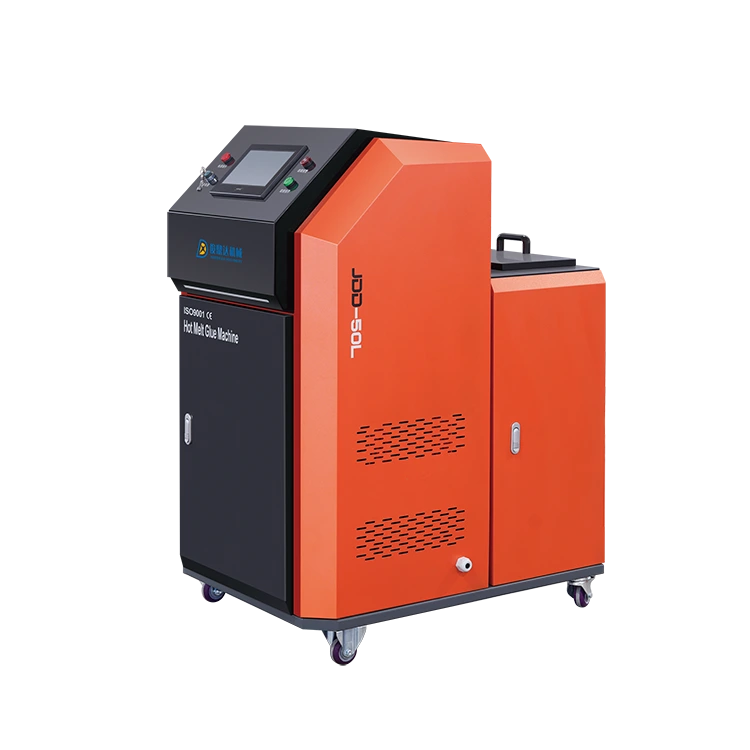

Calidum liquefactum gluten apparatus specifications

a. Glutinum tormentorum subsidium sursum et deorsum mechanismum adoptat, quod facile compono.

b. cylindrus dilatatio superior et inferior duplicem cylindrum cum tractu adoptat, et plicatura altitudinis ad libitum ab 17 ad 100mm ponitur.

c. Machina gluten machinae gluten liquefactum automatico calido adoptat, glutinum magnitudine ipso pervestigatum est.

d. Ad libitum nulla-drip alta celeritas glutinum gun, titanium stannum 0.4mm COLLUM (occursum summus celeritate gluten confractus)

e. Longitudo totius lineae longior est, compatibilis cum spumis et glutinis vulgaribus.
